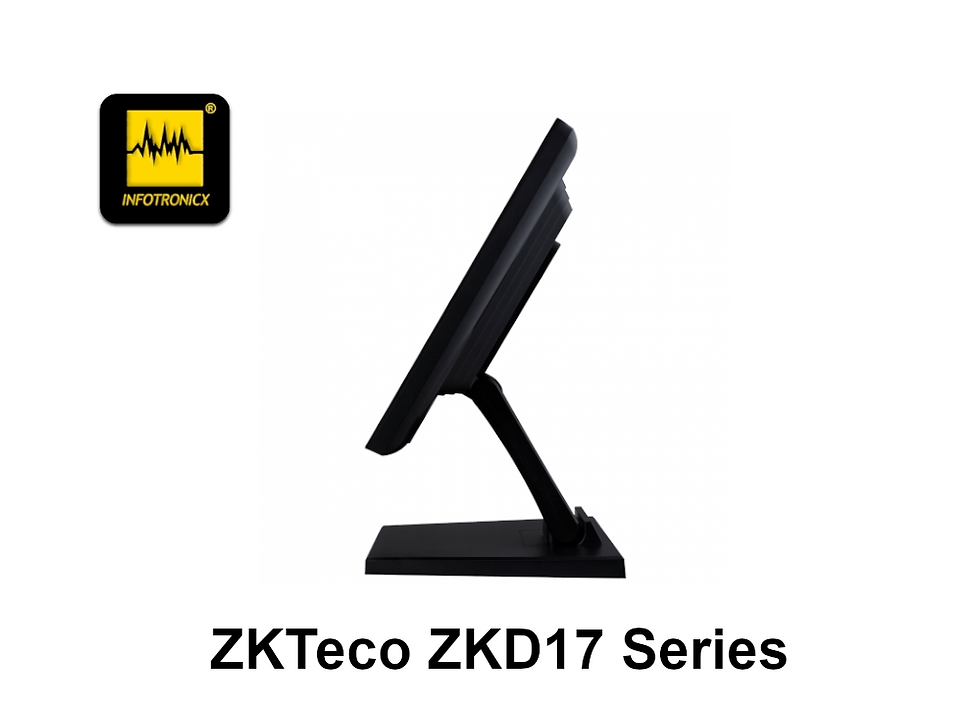

ZKTeco ZKD17 Series
SKU: ZKD17 Series
Touch Monitor
Function-
- Taiwan EETI touch card
- Factory-control Grade A LED panel
- 24-hour non-stop operation
- Efficient heat dissipation system
- Foldable Touch Monitor
- Support windows platforms
- Multiple installation methods available, including horizontal, vertical and VESA standard
- High gloss black edges
- Integrated touch function and LCD solution
- Support USB touch interface
- Support VGA input format
Parameter
Model Name ZKD17 LCD Type Type 17" AUO TFT LCD Panel Dimension 384*55*315mm (L*W*H) Display Area 341×273(mm) Max. Resolution 1280×1024 at 60Hz Color 16.7 million Brightness 250cd/m2 Response Time 5ms Visual Angle (Typ.at CR > 10) Horizontal
(left/right):85°/85°
Vertical (upper/lower):V80°/80°Contrast Ratio 1000:1 Video Input Format VGA Frequency (H/V) 30~80KHz / 60~75Hz MTBF 50,000 hours LED Backlight Lifespan 50,000 hours Touch Panel Type 5 wires capacitive touch (Standard) Interface USB Response Time USB: 10 ms Power Supply Type External power adapter Power Adapter 12V 3A Power Adapter Input Voltage 100-240 VAC, 50-60 Hz Output Voltage 12 volts at 4 amps max Power Consumption 12W(Max) Work environment Operating Temp.. 0°C~50°C Storage Temp. -20°C~60°C Operating Humidity 5%~90% Storage Humidity 5%~90% Appearance Installation Mode 1) VESA 75 mm
2) Using a horizontal or vertical mounting supportOSD Control Button AUTO, +, POWER, -, MENU Function Brightness, Contrast, Auto correction, Phase, Clock, Row and column position, Language,Function setting, Reset Other Accessory Power cable; Power adapter; USB cable; VGA cable Warranty Period 1 year
