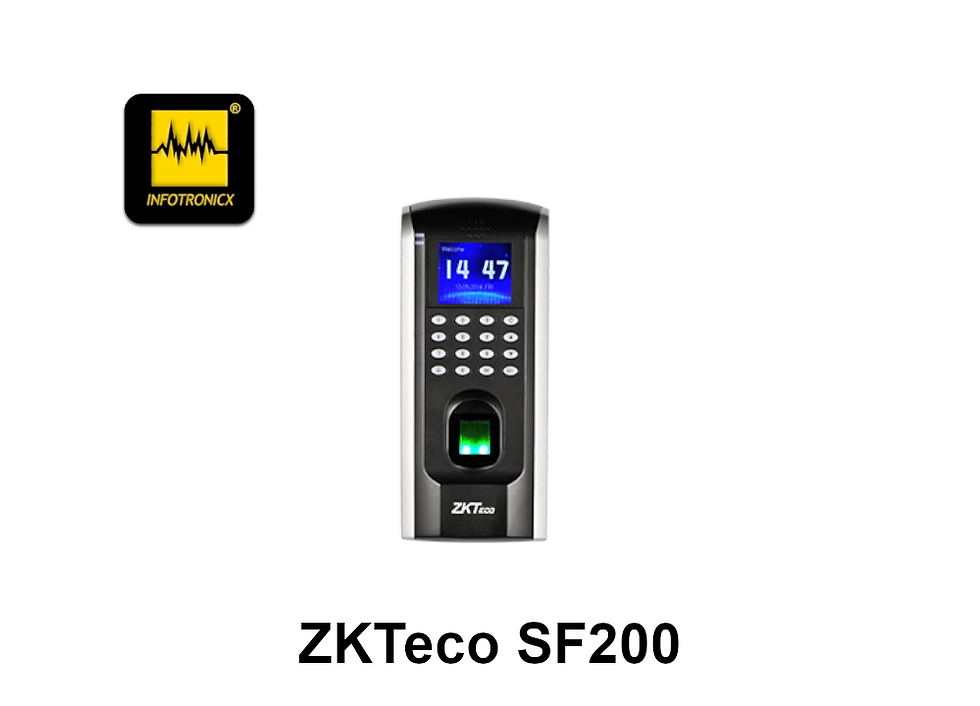

ZKTeco SF200
SF200 is an IP based fingerprint terminal that works in standalone and network modes. The 4*4 keypad and LCD display make it easy to operate in standalone mode. In network mode, it can connect with ZKAccess3.5 software for access control and time attendance management. Wiegand output enables the SF200 to connect with any third party control panel that supports 26 bit Wiegand, which allows security suppliers and system integrators to integrate ZKTeco fingerprint identification technology that is accurate, convenient and cost-effective with their current system. Auxiliary input interface allows SF200 to connect with an external source, for instance a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.
FEATURES
Fingerprint 1500
ID Card Capacity 5000
Record Capacity 80000
SPECIFICATIONS
• 1500 Fingerprint Capacity
• 80,000 Record Capacity
• TCP/IP, RS485 Host communication
• 2-inch TFT Screen Display
Parameter
Model SF200 LCD 2.4-inch TFT (220 x 176) Color Screen Fingerprint Sensor ZK Optical Sensor (500DPI) Algorithm Version ZKFinger VX10.0 Communication TCP/IP, RS485 Fingerprint Capacity 1,500 Card Capacity (Optional) 5,000 (EM/Mifare) Records Capacity 80,000 Access Control Interface Electric lock, Door sensor, Alarm, Exit button, Doorbell Wiegand Signal Wiegand Output (optional Input) Aux. Input 1ea for linkage function Power Supply DC 12V/3A Operating Temperature 0 ~ 45ºC (32º~113ºF) Operating Humidity 20 ~ 80% Dimension(W x L x H) 91 x 188 x 38 mm
