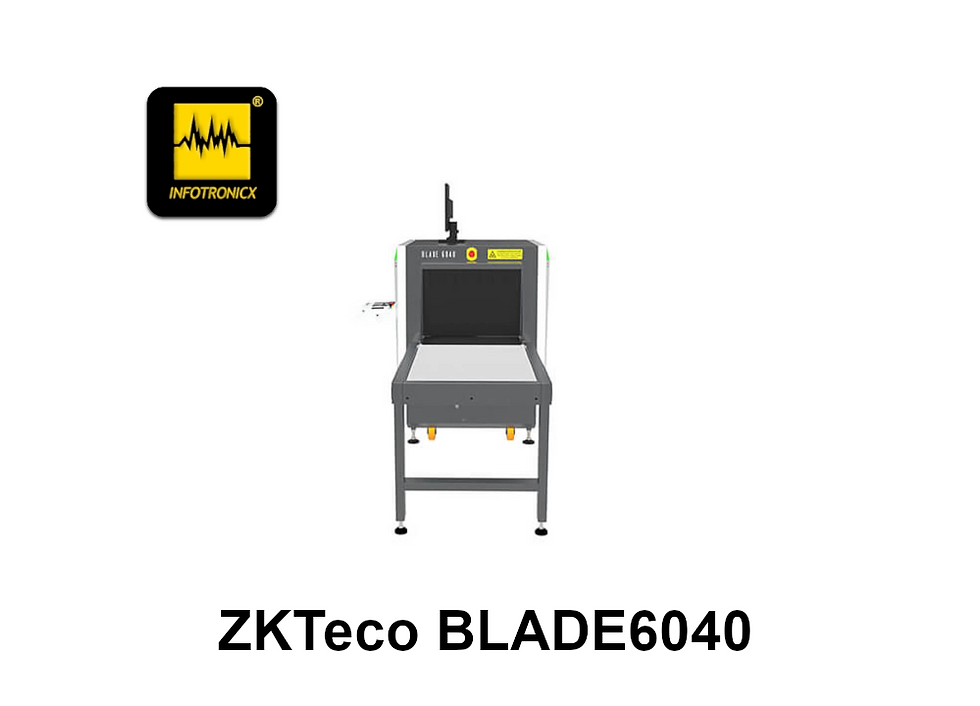

ZKTeco BLADE6040
BLADE6040 is a X-ray baggage inspection system with a tunnel size of 610*420mm which provides an effective inspection on mail, hand-held baggage, luggage and other items. It helps to identify suspicious items such as weapons, liquids, explosives, drugs, knives, fire guns, bombs, toxic substances, flammable substances, ammunition and other dangerous objects which may lead to potential safety hazard by atomic number identification. High image quality in combination with automatic identification of suspicious objects allows the operator to quickly and effectively evaluate any luggage content.
Parameter
Tunnel Dimensions (W*H) 610 * 420 mm Conveyor Speed 0.20 m/sec. ~ 0.40 m/sec Load on Conveyer max. 200kg (evenly distributed) Space Definition Horizontal Φ1.0mm Vertical Φ2.0mm Steel Penetration 38mm guaranteed, 40mm typical Wire Resolution 38AWG guaranteed, 40AWG typical Dual-energy Detector Yes Number of Colors in X-ray Image 3 Dimensions (L*W*H) 1987.5*1023.9*1317mm Package Dimensions (L*W*H) 2100mm*1200mm*1600 mm Package Weight 750kg Film Safety ASA / ISO1600 standard of film safety Single Inspection Dosage Rate ≤1.0μGy Operating Temperature -10°C to +45°C Storage Temperature -20°C to +60°C Humidity 5 - 95%, non condensing Power Supply 230 VAC +/- 10% / 60 / 50 Hz (EU)
110 VAC +/- 10% / 60 / 50 Hz (US)Power Consumption 700W Sound Pressure < 51.8dB (A) Tube Current 0.5 - 0.1 mA (adjustable) Anode Voltage 150-170 kV(adjustable) Generator Cool Seal oil cooling / 100% Processor I7-7700 Monitor 21” LED color Memory 8 GB DDR4 Hard Drive 240GB SSD + 1TB HDD Graphic Card NVIDIA GeForce GTX 1660 Ti USB Port 4 Ports Vertical Resolution of the Image Vertical Resolution of the Image
