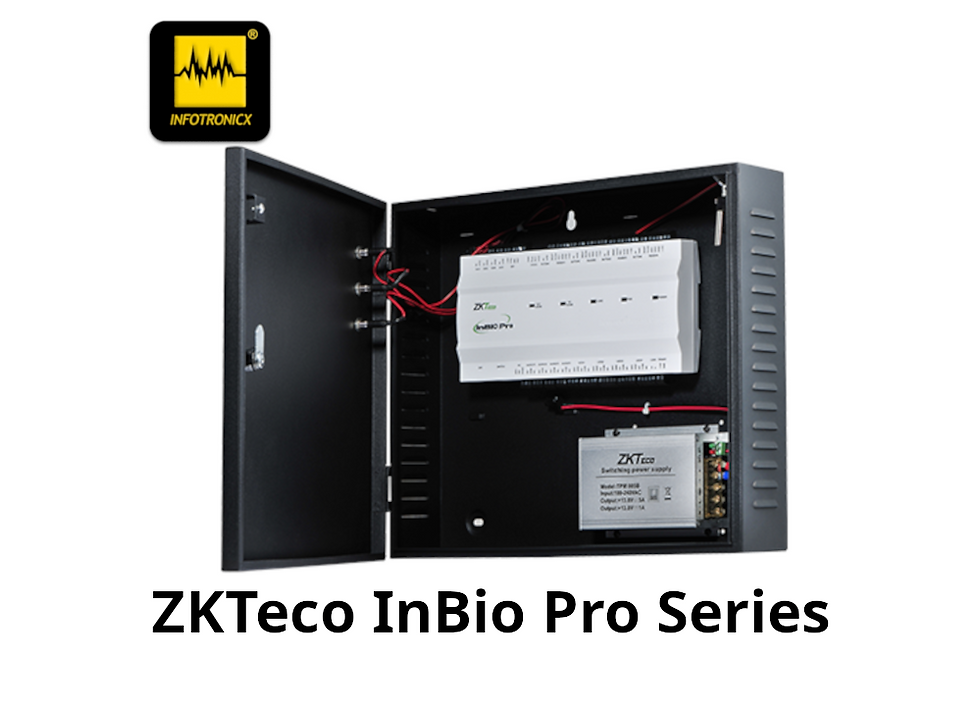

ZKTeco InBio Pro Series
InBio Pro Series is a project oriented high-end product line with unique features such as embedded fingerprint verification and advanced access control functions, which can be managed by TCP/IP communication thru LAN or WAN networks. The InBio Pro Series are the perfect match for ZKBioSecurity web based software platform to provide a full featured biometric security solution. In combination with the FR1300 RS485 reader, the panels can authenticate users under multiple verification modes such as fingerprint, card and password for a higher security level.
Parameter
InBio-160
InBio-260
InBio-460
Number of doors controller
1 Door
2 Door
4 Door
Numbers of readers supported
4(2 RS-485 Reader, 2 26-bit wiegand reader)
8(4 RS-485 Reader, 4 26-bit wiegand reader)
12 (8 RS-485 Reader, 4 26-bit wiegand reader)
Types of readers supported
26-bit Wiegand and RS485 FR Series Reader
26-bit Wiegand and RS485 FR Series Reader
26-bit Wiegand and RS485 FR Series Reader
Number of Inputs
3(Exit button and Door Status, 1 AUX)
6( 2 Exit button, 2 Door Status, 2 AUX)
12( 4 Exit button, 4 Door Status, 4 AUX)
Number of Outputs
2 (1-Form C Relay for Lock and One Form C Relay for Aux Output)
4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
Card holders Capacity
60,000
60,000
60,000
Fingerprint Capacity
20,000
20000
20000
Log Events Capacity
100,000
100,000
100,000
Communication
TCP/IP
TCP/IP
TCP/IP
Package Dimension
350(L)×90(H)×300(W)mm
350(L)×90(H)×300(W)mm
350(L)×90(H)×300(W)mm
Package Weight
3.6kg
3.6kg
3.7kg
CPU
32 bit 1.2GHz CPU
32 bit 1.2GHz CPU
32 bit 1.2GHz CPU
RAM
128MB
128MB
128MB
Flash Memory
256MB
256MB
256MB
Power
9.6V-14.4V DC
9.6V-14.4V DC
9.6V-14.4V DC
Operating Temp
0-45 °C
0-45 °C
0-45 °C
Operating Humidity
20% to 80%
20% to 80%
20% to 80%
