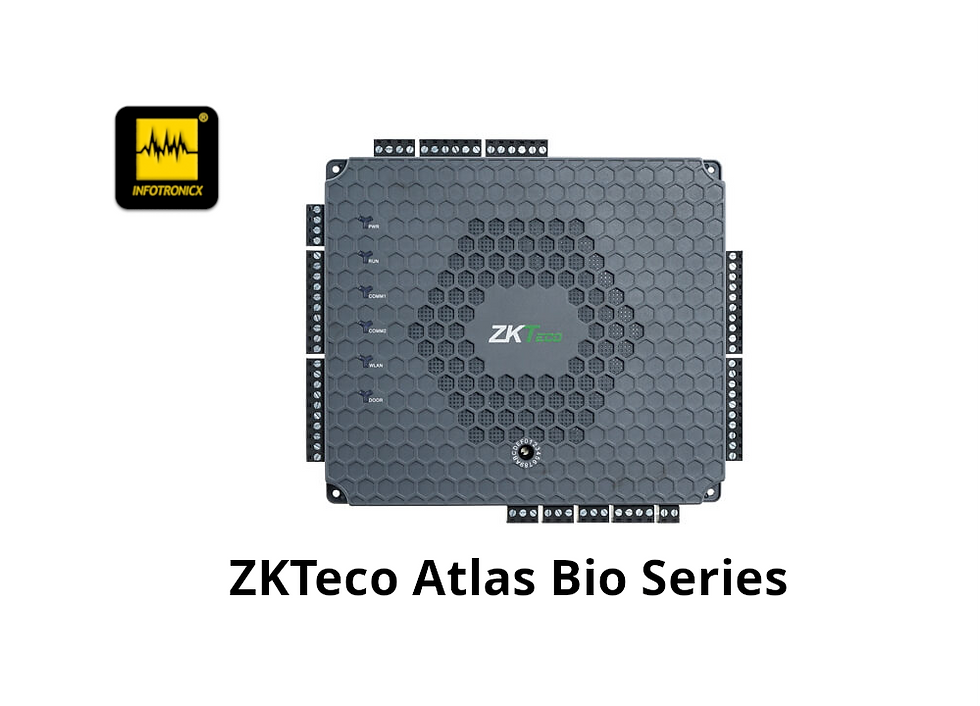

ZKTeco Atlas Bio Series
Atlas Bio Series consists of Multi-Door Biometric Access Control Panels with Integrated Software for Advanced Access Control Management functions. Atlas Bio Series supports ZKTeco FR1500A fingerprint readers as well as any 3rd-party readers with Wiegand or OSDP communication protocols. The series comes in three variants to match your specific requirements namely Atlas 160, Atlas 260, and Atlas 460 for 1,2 and 4 door access control respectively and can support a maximum of 84 doors in combination with secondary panels.
The Bio Series panels communicate securely over wired as well as wireless TCP/IP networks using SSL/TLS. The firmware is field-upgradeable, allowing your system to stay current with the latest features and security enhancements. The series also supports various accessories and devices such as lights, alarms, annunciators, intrusion detection panels, additional locking devices, or any other external electrical device via user-programmable auxiliary relays.
In addition, the Atlas Mobile App offers the most flexible and convenient way of door access control management including remotely unlocking doors, universal lockdown & recovery, access to events & alarms, adding/modifying users, and much more.
Features:
- Built-in Software
- Control Multiple Accessories
- Remote Access via Mobile App
- Advanced Access Control Functions
- Scalability Based-on Project Requirements
- Compatible with Various 3rd Party Devices
- Supports upto 84 Doors
- Capacity: 5000 (Fingerprints and/or Cards)
- Unlimited Archive Downloads & 10,000 Transactions
- Choice of Readers: ZK FR1500A/Wiegand/OSDP Readers
Parameter
Atlas-160
Atlas-260
Atlas-460
Number of Doors Controlled
One Door
Two Doors
Four Doors
Number of Readers Supported
2 (Wiegand or OSDP Readers)
2 (Fingerprint Readers)
4 (Wiegand or OSDP Readers)
4 (Fingerprint Readers)
8 (Wiegand or OSDP Readers)
8 (Fingerprint Readers)
Types of Readers Supported
ZKTeco FR1500A fingerprint readers
and 3rd party 125kHz & 13.56MHz
Wiegand, OSDP and RS-485 readers
ZKTeco FR1500A fingerprint readers
and 3rd party 125kHz & 13.56MHz
Wiegand, OSDP and RS-485 readers
ZKTeco FR1500A fingerprint readers
and 3rd party 125kHz & 13.56MHz
Wiegand, OSDP and RS-485 readers
Number of Inputs
4 (Exit Device, Door Contact and 2 Aux)
6 (2 Exit Devices, 2 Door Contacts and 2 Aux)
10 (4 Exit Devices, 4 Door Contacts and 2 Aux)
Number of Outputs
2 (1 Form C relay for lock and
1 Form C relay for Aux output)
3 (2 Form C relays for locks and
1 Form C relay for Aux output)
5 (4 Form C relays for locks and
1 Form C relay for Aux output)
User Capacity
5,000 (Fingerprint and/or card users)
5,000 (Fingerprint and/or card users)
5,000 (Fingerprint and/or card users)
Fingerprint Template Capacity
5,000 ( up to 10fingerprints per user)
5,000 ( up to 10fingerprints per user)
5,000 ( up to 10fingerprints per user)
Logs
10,000 transactions
plus unlimited archive downloads
10,000 transactions
plus unlimited archive downloads
10,000 transactions
plus unlimited archive downloads
Weight
9 lbs (3.8 kg)
10 lbs (4.2 kg)
10 lbs (4.2 kg)
Communication
TCP/IP, Wi-Fi, Wiegand, OSDP
TCP/IP, Wi-Fi, Wiegand, OSDP
TCP/IP, Wi-Fi, Wiegand, OSDP
Browsers Supported
Chrome, Firefox, Edge
Chrome, Firefox, Edge
Chrome, Firefox, Edge
Enclosure
Powder Coated Aluminum
Powder Coated Aluminum
Powder Coated Aluminum
Mounting
Wall Mount
Wall Mount
Wall Mount
Recommended Power Supply
12V DC, 3A (PoE)
12V DC, 3A (PoE)
12V DC, 3A (PoE)
Dimensions (Bundle Only)
15 in (L) X 3.15 in (W) X 11in (H).
380 mm(L) X 80 mm(W) X 280 mm(H)
15 in (L) X 3.15 in (W) X 11in (H).
380 mm(L) X 80 mm(W) X 280 mm(H)
15 in (L) X 3.15 in (W) X 11in (H).
380 mm(L) X 80 mm(W) X 280 mm(H)
Dimensions (Board Only)
6.3 in. X 4.17 in. (160 mm X 106 mm)
7.75in. X 6.73in. (197mm X 171mm)
7.75in. X 6.73in. (197mm X 171mm)
